- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dansette Products Ltd.; London
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175758

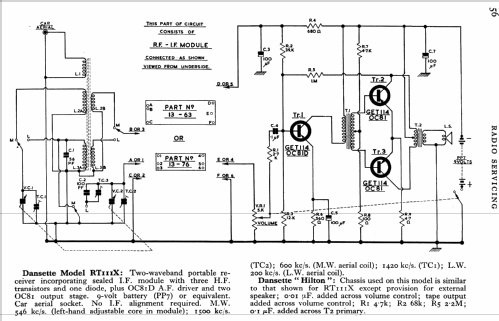

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Hilton - Dansette Products Ltd.; London
- Notes
- This set uses a sealed Osc/IF module (3 transistors), plus 3 audio transistors. Fitted with earphone, & car aerial sockets. Battery type PP7. Chassis similar to model RT111X.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
