• Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176625

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 210-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org

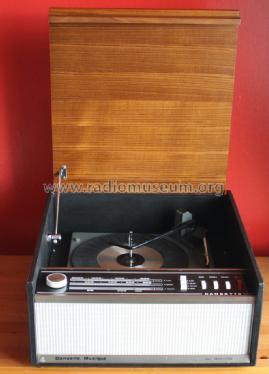

  • Model: Musique - Dansette Products Ltd.; London
  • Notes
  • Transistor radiogram fitted with BSR type UA15 record changer. A RF/IF module is used in this set followed by a 5 transistor audio amplifier. Convertable to stereo by addition of Dansette add-on-unit type "MS2" & stereo cartridge.
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
