RT111; Dansette Products (ID = 272432) Radio
Dansette Products: RT111 [Radio] ID = 272432 442x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model RT111, Dansette Products Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Dansette Products Ltd.; London
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC78D OC78 OC78 OA70
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RT111 - Dansette Products Ltd.; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 150 x 80 mm / 8.7 x 5.9 x 3.1 inch
Notes Battery 9V PP7.
Source of data -- Collector info (Sammler)

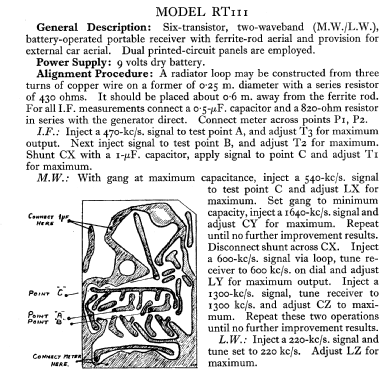

Literature/Schematics (1) - - Manufacturers Literature

Model page created by John Koster. See "Data change" for further contributors.
