Digital Multimeter 935
Data Precision Corp.; Wakefield
- Country
- United States of America (USA)
- Manufacturer / Brand
- Data Precision Corp.; Wakefield
- Year
- 1980 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 310768

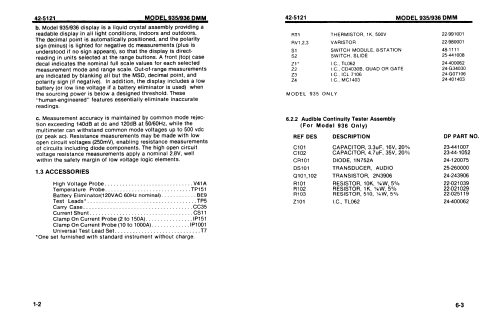

Picture from manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / PP3: 1 x 9 / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter 935 - Data Precision Corp.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 6.75 x 1.5 x 3.5 inch / 171 x 38 x 89 mm
- Notes
-
Hand held, pocket portable 3-1/2 digit.
Similar to model 936 without audible alarm circuit.
- Net weight (2.2 lb = 1 kg)
- 0.270 kg / 0 lb 9.5 oz (0.595 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
- Other Models
-
Here you find 8 models, 6 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Data Precision Corp.; Wakefield
