• Country
• Great Britain (UK)

• Manufacturer / Brand
• Datong Electronics, Ltd.; Leeds

• Year
• 1985 ?

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 171816

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• BC182

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 8-20 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

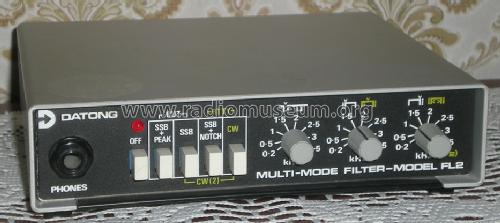

• Model: Multi-Mode Filter FL-2 - Datong Electronics, Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 7.2 x 1.7 x 6 inch / 183 x 43 x 152 mm

• Notes
• The Datong FL-2 is designed specifically to improve reception of SSB, CW, RTTY and AM signals in interference conditions. It features twelve poles of tunable active filtering, independent low and high-pass filters. It can remove "monkey chatter" or "splatter" to SSB signals, remove heterodyne interference to AM and SSB signals, optimize bandwidth for RTTY, FAX and SSTV reception. Simple push-button selection of the three main operating modes: SSB, SSB+PEAK and CW. Connects to any receiver's headphone or speaker output. Requires 10-15 VDC. 7.2" x 6" x 1.7"

  The Datong FL2 contains the same filters as the Model FL-3 but without an automatic notch filter. Both the FL-2 and FL-3 are made in England.

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
