Tellus 1-46V AZ31

Tellus 1-46V; David-Andersen Radio (ID = 55668) Radio
Use red slider bar for more.
Tellus 1-46V; David-Andersen Radio (ID = 55668) Radio

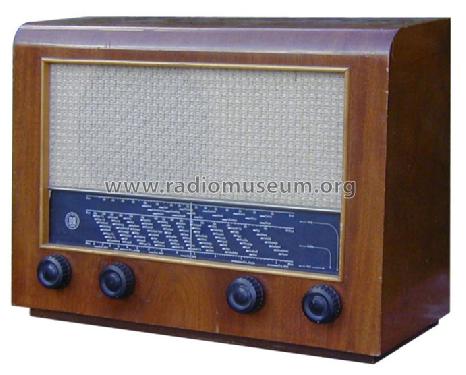

David-Andersen Radio: Tellus 1-46V [Radio] ID = 55668 691x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tellus 1-46V AZ31, David-Andersen Radio A/S; Oslo

Country:  Norway
Manufacturer / Brand:  David-Andersen Radio A/S; Oslo
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EBF32 EF39 EL33 AZ31
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 130-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Tellus 1-46V [AZ31] - David-Andersen Radio A/S; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 350 x 200 mm / 19.7 x 13.8 x 7.9 inch
Notes

See also David-Andersen Tellus 1-46V with rectifier tube U50.

Price in first year of sale 435.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.
