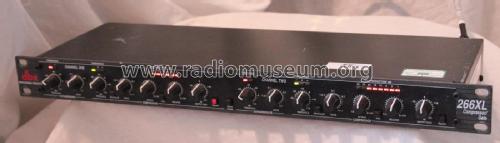

Compressor/Gate DBX266XLIIV-UK

Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102968) Misc Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102969) Misc
Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102970) Misc Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102971) Misc
Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102972) Misc Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102973) Misc
Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102974) Misc
Use red slider bar for more.
Compressor/Gate DBX266XLIIV-UK; dbx Inc.; Waltham MA (ID = 2102968) Misc
dbx Inc.; Waltham MA: Compressor/Gate DBX266XLIIV-UK [Misc] ID = 2102968 1400x193
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compressor/Gate DBX266XLIIV-UK, dbx Inc.; Waltham (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  dbx Inc.; Waltham (MA)
Year: 2005 ? Category: Miscellaneous (Other, Various) - see notes
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 to 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compressor/Gate DBX266XLIIV-UK - dbx Inc.; Waltham MA
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 44 x 146 mm / 19 x 1.7 x 5.7 inch
Notes

Frequency Response / Réponse en fréquence / Frequenzgang / Respuesta de frecuencia Flat 20Hz - 20kHz, +0, -0.5dB Bandwidth 0.35Hz - 90kHz, +0, -3dB Input (Balanced or Unbalanced) / Entrée (symétrique ou asymétrique) / Eingang (symmetrisch/asymmetrisch / Entrada (equilibrada o desequilibrada) Impedance >40kΩ Max Level +22dBu Output (Impedance Balanced) / Sortie (Impédance symétrique) / Ausgang (impedanzsymmetriert) / Salida (impedancia equilibrada) Impedance +4dBu: Balanced: 100Ω Unbalanced: 50Ω -10dBV: Balanced: 1kΩ Unbalanced: 500Ω Max Level >+21dBu, >+18dBm (into 600Ω) Sidechain Insert / Insert Sidechain / Sidechain-Anschluss / Sidechain Insert Input Impedance >10kΩ Output Impedance 2kΩ Max Input Level +22dBu Max Output Level >+20dBu Distortion + Noise <0.2%; any amount of compression at 1kHz Klirrfaktor + Rauschen <0,2% bei jedem Kompressionsgrad bei 1 kHz Distorsion + Bruit <0.2%; tout taux de compression à 1kHz Distosión + ruido <0,2%; cualquier cantidad de compresión a 1kHz Intermodulation Distortion <0.2% SMPTE Distorsion Intermodulation <0,2% SMPTE Intermodulationsverzerrungen <0,2% (SMPTE) Distorsión de intermodulación <0,2% SMPTE Noise <-93dB, unweighted (22kHz measurement bandwidth) Bruit <-93dB, non pondéré (22kHz) Rauschen <-93dB, unbewertet (22kHz Messbandbreite)) Ruido <-93dB, no ponderado (ancho de banda de misura: 22kHz ) Dynamic Range >114dB, unweighted Dynamique >114dB, non pondéré Dynamikbereich >114dB, unbewertet Gama dinámica >114dB, no ponderado Interchannel Crosstalk <-95dB, 20Hz to 20kHz Diaphonie <-95dB, 20Hz à 20kHz Übersprechen zwischen Kanälen <-95dB, 20Hz bis 20kHz Diafonía entre los canales <-95dB, 20Hz a 20kHz Common Mode Rejection >40dB, typically >55dB @ 1kHz Réjection de Mode Commun >40dB, typique >55dB @ 1kHz Gleichtaktunterdrückung >40dB, typisch >55dB bei 1kHz Rechazo de modo común >40dB, típico >55dB a 1kHz Stereo Coupling True RMS Power Summing™ Couplage Stéréo Sommation en énergie Stereokopplung True RMS Power Summing™ Acoplamiento estéreo True RMS Power Summing™ THRESHOLD Compressor OverEasy® or hard-knee; -40 to +20dBu Expander/Gate -60 to +10dBu RATIO Compressor 1:1 to Infinity:1 Expander/Gate 1:1 to 4:1 ATTACK Time Compressor Scalable Program-Dependent AutoDynamic™ Expander/Gate <100µSec RELEASE Time Compressor Scalable Program-Dependent AutoDynamic™ Expander/Gate Program-Dependent

MADE IN CHINA

Net weight (2.2 lb = 1 kg) 2.190 kg / 4 lb 13.2 oz (4.824 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
