Type I Noise Reduction System 150

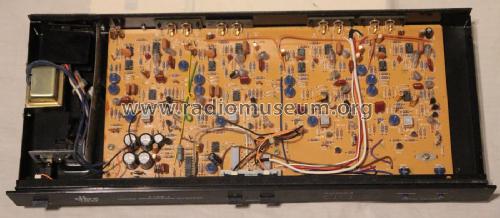

Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167346) Ampl/Mixer Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167347) Ampl/Mixer
Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167348) Ampl/Mixer Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167349) Ampl/Mixer
Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167350) Ampl/Mixer Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167352) Ampl/Mixer
Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167353) Ampl/Mixer Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167354) Ampl/Mixer
Use red slider bar for more.
Type I Noise Reduction System 150; dbx Inc.; Waltham MA (ID = 2167346) Ampl/Mixer
dbx Inc.; Waltham MA: Type I Noise Reduction System 150 [Ampl/Mixer] ID = 2167346 1400x243
Select picture or schematic to display from thumbnails on the right and click for download.
For model Type I Noise Reduction System 150, dbx Inc.; Waltham (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  dbx Inc.; Waltham (MA)
Year: 1974 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Type I Noise Reduction System 150 - dbx Inc.; Waltham MA
Material Metal case
Shape Rack
Dimensions (WHD) 483 x 44 x 184 mm / 19 x 1.7 x 7.2 inch
Notes

Dynamic range 110dB (peak signal to A weighted background noise)
Input impedance 100k ohms (designed to be driven from a source impedance less than 10k ohms)
Nominal Input level -10dB
Maximum input level +16dB
Output impedance 100 ohms (designed to drive 5k ohm load or greater)
NOTE- not designed for operation into 600ohms loads
maximum output Level +16dB
Frequency Response +-0.5dB 30Hz to 20kHz (encode/decode)
Slew rate >10V/usec
Effective noise reduction 30dB plus 10dB of Headroom
Equivalent input noise -85dBV
Distortion <0.5% THD 30Hz to 100Hz   <0.1% THD 100Hz to 20kHz
Power consumption 7W

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
