- Country
- Great Britain (UK)
- Manufacturer / Brand
- Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176628
-
- alternative name: Decca Gramophone || Decca Radio

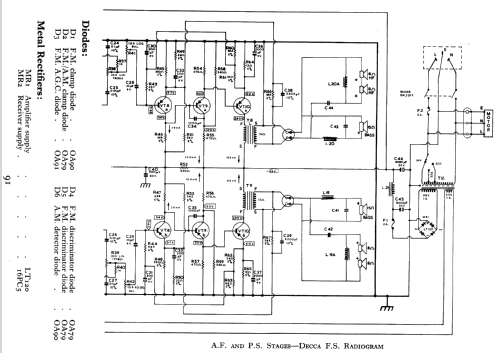

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- AF178 AF115 AF115 AF116 AF116 SFT237 SFT353 OC44 OC81 AD140 SFT237 SFT353 OC44 OC81 AD140
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 6 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FS - Decca Brand, Samuel Barnett &
- Shape
- Console with any shape - in general
- Notes
- Stereo radiogram with socket for optional FM stereo decoder. Fitted with Garrard type AT6 Mk2 record changer. Speakers bass 10 x 6 inches, treble two 4 inches.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- ERT Chart 1678
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
