- Country
- Great Britain (UK)
- Manufacturer / Brand
- Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176629
-
- alternative name: Decca Gramophone || Decca Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

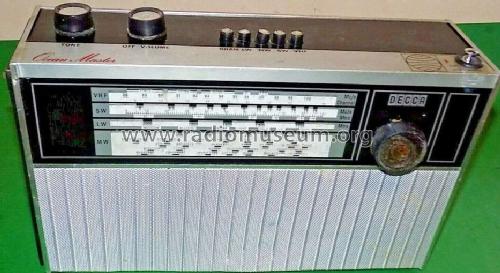

- Model: Ocean Master TP89 - Decca Brand, Samuel Barnett &
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- SW band 5.85-18.1 MHz. Batteries 2 type PP9. Sockets for ext aerial, gram, & earphone.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- Trader Sheet 1813
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
