• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201535
    • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Prestomatic PT/AC - Decca Brand, Samuel Barnett &
  • Shape

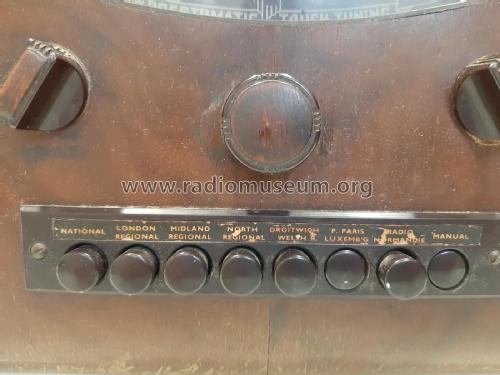

  • Tablemodel with Push Buttons.
  • Notes
  • A similar chassis is fitted to the PG/AC radiogram.
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
