• Country
• Great Britain (UK)

• Manufacturer / Brand
• Decca, London

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84891

• • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

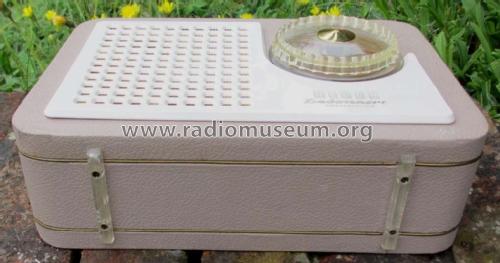

• Model: Debonaire TP44 - Decca, London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 170 x 90 mm / 10.2 x 6.7 x 3.5 inch

• Notes
• .

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Author
• Model page created by William J Blanchflower. See "Data change" for further contributors.
