- Country
- United States of America (USA)
- Manufacturer / Brand
- Decca Records, Inc.; New York, NY
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 139134
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: DP-545 - Decca Records, Inc.; New York,
- Shape
- Tablemodel, with any shape - general.
- Notes

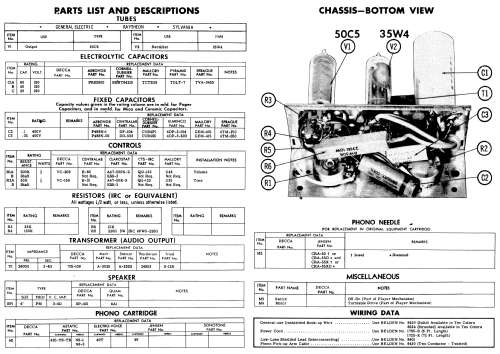

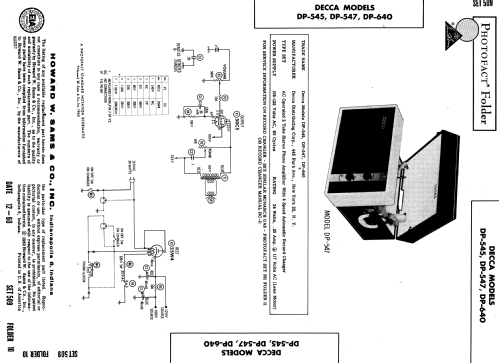

- Sams photofact, set 509, folder 10, date 12-60, features the Decca models DP-545, DP-547 and DP-640 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 509 folder 10 date 12-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
