The Seaford IV (4) DP-587
Decca Records, Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Decca Records, Inc.; New York, NY
- Year
- 1960 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 139079
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25L6GT
- Number of Transistors
- Semiconductors
- 1N1763
- Main principle
- Audio-Amplification; 1 AF stage(s)
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: The Seaford IV DP-587 - Decca Records, Inc.; New York,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.5 x 7 x 12 inch / 343 x 178 x 305 mm
- Notes
- Portable monaural record player, dual sapphire, 1 speaker. Pyroxlin cabinet.
- Net weight (2.2 lb = 1 kg)
- 9 lb 0 oz (9 lb) / 4.086 kg
- Price in first year of sale
- 25.00 $
- Literature/Schematics (1)

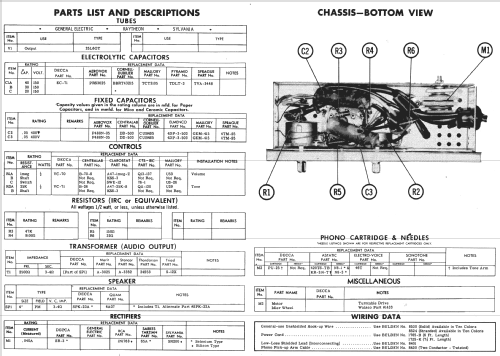

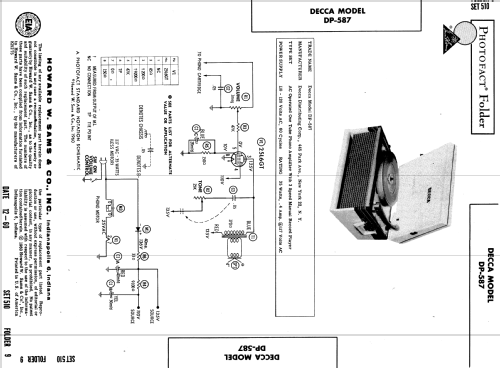

- Photofact Folder, Howard W. SAMS (Set 510 folder 9 date 12-60)
- Literature/Schematics (2)
- Billboard, Sep. 19, 1960
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
