• Country
• United States of America (USA)

• Manufacturer / Brand
• Decca Records, Inc.; New York, NY

• Year
• 1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 139269

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 50EH5 50EH5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

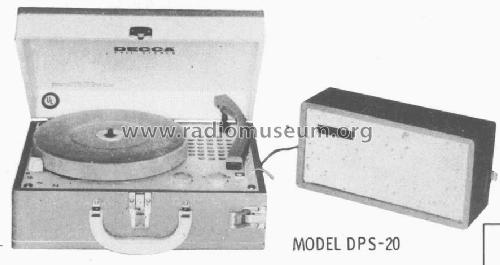

• Model: The Saxon DPS-20 - Decca Records, Inc.; New York,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15 x 5 x 10 inch / 381 x 127 x 254 mm

• Notes
• AC operated stereo amplifier with 3 speed manual record player. 2 speakers, dual sapphire, Pyroxlin cabinet.

  Sams photofact set 508 folder 8 date 11-60 features the Decca models DP-584, DP-546, DP-586 and DPS-20 as the same schematic.

• Net weight (2.2 lb = 1 kg)
• 9 lb 5 oz (9.313 lb) / 4.228 kg

• Price in first year of sale
• 30.00 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 508 folder 8 date 11-60)

• Literature/Schematics (2)
• Billboard, Sep. 19, 1960

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
