16/41 Ch= 10DB661

16/41 Ch= 10DB661; De Forest DeForest (ID = 2242807) Radio

16/41 Ch= 10DB661; De Forest DeForest (ID = 2242808) Radio

16/41 Ch= 10DB661; De Forest DeForest (ID = 2242809) Radio
Use red slider bar for more.
16/41 Ch= 10DB661; De Forest DeForest (ID = 2242807) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1A7G 1E4G 1P5M 1P5M 1H5G 1Q5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 16/41 Ch= 10DB661 - De Forest DeForest Crosley

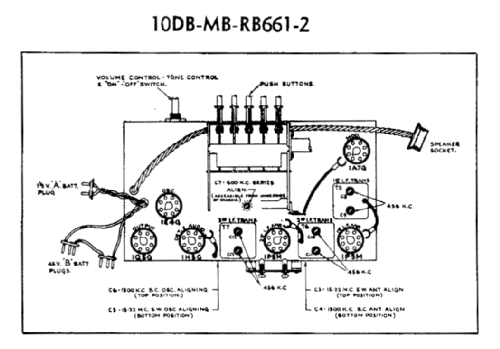

Notes

This set uses a 5-pushbutton tuning system.

It's electrically identical to the Rogers 15/61 and 15/66, the Majestic 4161 and 4166, and the De Forest and 66/41 models.

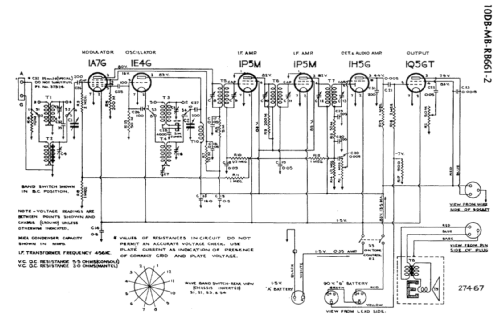

Literature/Schematics (1) Radio College of Canada (RCC) (Sheet 88)

Model page created by Robin Roeckers. See "Data change" for further contributors.
