50; De Forest DeForest (ID = 648007) Radio
De Forest DeForest: 50 [Radio] ID = 648007 784x700
Select picture or schematic to display from thumbnails on the right and click for download.

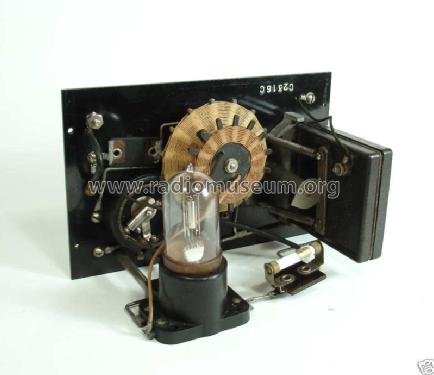

For model 50, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
ebay #200364043726

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: WD12
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 50 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 11 x 6 x 5 inch / 279 x 152 x 127 mm
Notes Parallel model to the USA Crosley 50.
Sometimes a fifth (middle) terminal without marking and slightly out of line is addad to ease connection of +B and output. A simple friction (rubber pulley) vernier is also sometimes added by owners.
Collectors' prices

Model page created by Meyer Rochwerger. See "Data change" for further contributors.



All listed radios etc. from De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Here you find 250 models, 105 with images and 169 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
