52 ; De Forest DeForest (ID = 1526696) Radio

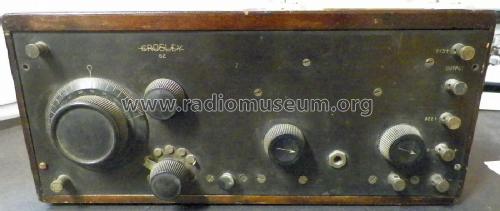

De Forest DeForest: 52 [Radio] ID = 1526696 933x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model 52, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
deForest Crosley Model 52

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1924/1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: WD12 or C12_Triode WD12 or C12_Triode
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 52 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 14 x 6 x 5 inch / 356 x 152 x 127 mm
Notes Made by De Forest Radio Corp. in Toronto, Canada in the 1920's.
Collectors' prices
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1 (page 120.)

Model page created by Alan Larsen. See "Data change" for further contributors.
