• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285992

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7G 1E4G 1P5M 1P5M 1H5G 1Q5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 66/41 Ch= 10DB662 - De Forest DeForest Crosley

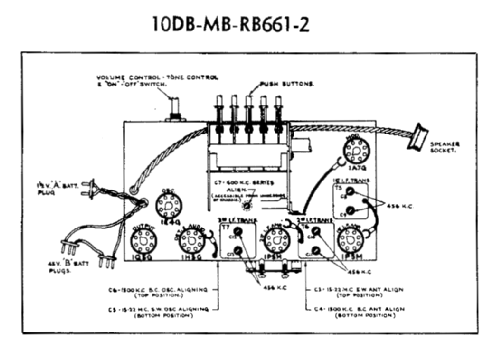

• Notes

• This set uses a 5-pushbutton tuning system.

  It's electrically identical to the Rogers 15/61 and 15/66, the Majestic 4161 and 4166, and the De Forest 16/41 models.



• Literature/Schematics (1)
• Radio College of Canada (RCC) (Sheet 88)

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.

• Other Models

• Here you find 271 models, 130 with images and 181 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
