A610/41 Ch= 10DA1061

A610/41 Ch= 10DA1061; De Forest DeForest (ID = 2243786) Radio

A610/41 Ch= 10DA1061; De Forest DeForest (ID = 2243787) Radio

A610/41 Ch= 10DA1061; De Forest DeForest (ID = 2243788) Radio

A610/41 Ch= 10DA1061; De Forest DeForest (ID = 2243789) Radio
Use red slider bar for more.
A610/41 Ch= 10DA1061; De Forest DeForest (ID = 2243786) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1941/1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6T6M 6J8M 6K7M 6P5G 6X6 6J5M 6K6M 6K6M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A610/41 Ch= 10DA1061 - De Forest DeForest Crosley
Notes

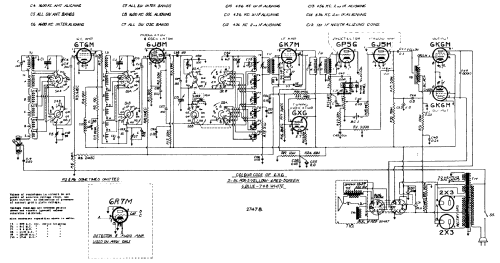

The Deforest model A610/41 is a 10-tube radio for standard broadcast and shortwave reception. Has tuning eye tube. Same schematic as the Majestic 41106A and Rogers 15/106A.

Literature/Schematics (1) - - Manufacturers Literature (Rogers service manual Vol 3 P. 170)

Model page created by Tom Seeger. See "Data change" for further contributors.
