A65/41 Ch= 10DA523

A65/41 Ch= 10DA523; De Forest DeForest (ID = 2242698) Radio

A65/41 Ch= 10DA523; De Forest DeForest (ID = 2242699) Radio

A65/41 Ch= 10DA523; De Forest DeForest (ID = 2242700) Radio
Use red slider bar for more.
A65/41 Ch= 10DA523; De Forest DeForest (ID = 2242698) Radio

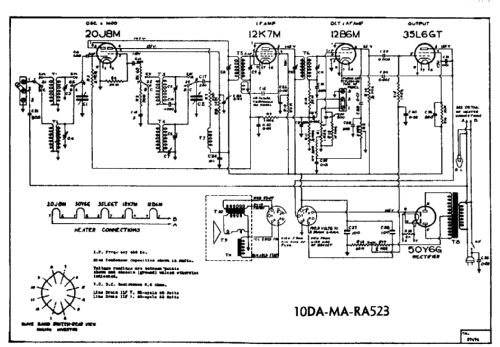

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 20J8M 12K7M 12B6M 35L6GT 50Y6G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A65/41 Ch= 10DA523 - De Forest DeForest Crosley
Notes This set is electrically identical to the Rogers 15/56A and the Majestic 4156A. This set has push-button tuning.
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 80 & Cross-Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.
