A97/41 Ch= 10DA765

A97/41 Ch= 10DA765; De Forest DeForest (ID = 2242992) Radio

A97/41 Ch= 10DA765; De Forest DeForest (ID = 2242993) Radio

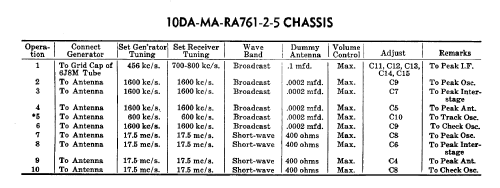

A97/41 Ch= 10DA765; De Forest DeForest (ID = 2242994) Radio

A97/41 Ch= 10DA765; De Forest DeForest (ID = 2242995) Radio
Use red slider bar for more.
A97/41 Ch= 10DA765; De Forest DeForest (ID = 2242992) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T6M 6J8M 6K7M 6B6M 6X6 6K6 80
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A97/41 Ch= 10DA765 - De Forest DeForest Crosley
Notes The 6X6 tube is a tuning indicator. This model has band indicator lights. This set has an 8-pushbutton tuning system. This model is electrically identical to the Rogers 15/70A, 15/77A, 15/79A, Majestic 4170A, 4177A, 4179A, De Forest A07/41 and A77/41.
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 82, 78 & Cross-Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.
