For model Albertan Ch= 7D734, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
By courtesy of Wayne Rose, Calgary, Canada.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6A7M 6K7M 75M 6F6M 6X6 2X3 2X3
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)

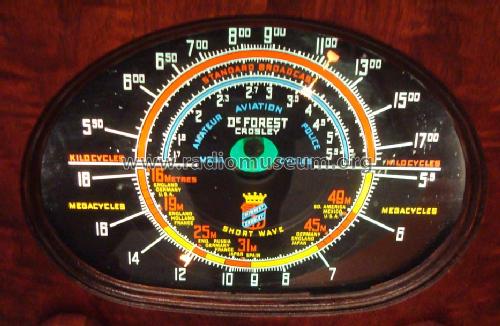

Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Albertan Ch= 7D734 - De Forest DeForest Crosley

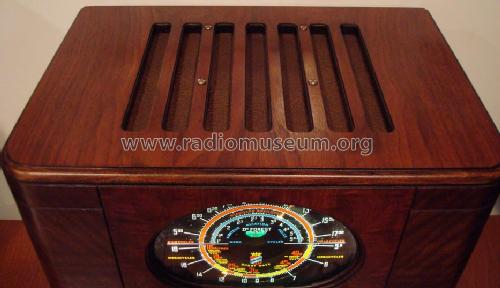

Material Wooden case

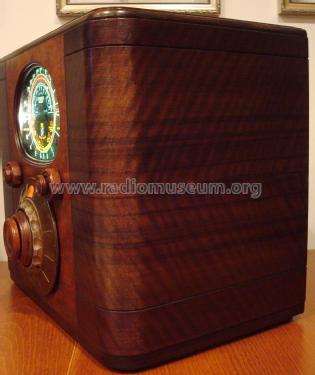

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.25 x 15.5 x 13.5 inch / 438 x 394 x 343 mm

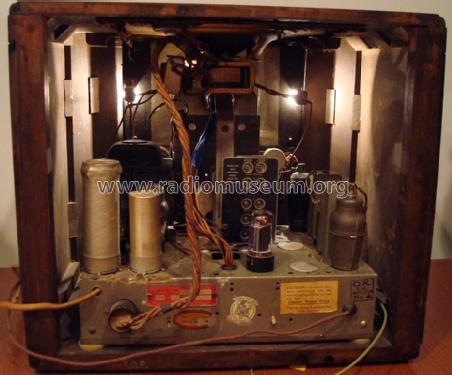

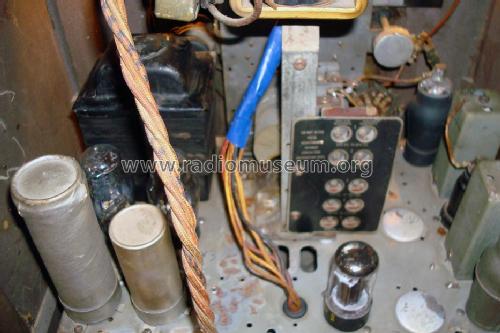

Notes This set, "The Albertan" wich chassis 7D734 has pre-set push-button tunning for 5 stations. These adjustments are done from the back and are relatively easy to do by tweaking according to the frequency ranges indicated. The 6X6 tube is a tuning indicator. The model covers 550 kHz through to 18 MHz (16 metres) in 3 bands.
Net weight (2.2 lb = 1 kg) 35 lb (35 lb 0 oz) / 15.890 kg
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 31, 32 & Cross Reference
Literature/Schematics (1) -- Original-techn. papers. (Rogers-Majestic & De Forest Service Manual Volume 3, page 14)

Model page created by Robin Roeckers. See "Data change" for further contributors.
