De Forest DeForest: Astor Ch= 9D513 [Radio] ID = 1394778 933x665
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astor Ch= 9D513, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
Scanned from the DeForest Folder for 1940.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7M 6K7M 75M or 6B6M 6K6G 6X5G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm
Power out
from Radiomuseum.org Model: Astor Ch= 9D513 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14.75 x 9 x 7.875 inch / 375 x 229 x 200 mm
Notes

The Rogers 14/52 and Majestic 952 are electrically identical to this model.

Price in first year of sale 29.95 $

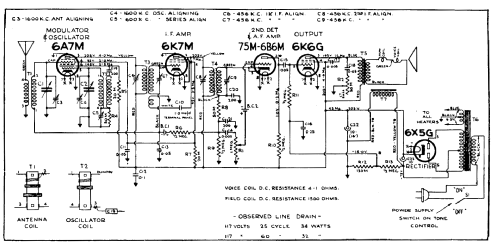

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 55A, 56 & Cross-Reference
Literature/Schematics (3) DeForest Folder for 1940.

Model page created by Robin Roeckers. See "Data change" for further contributors.
