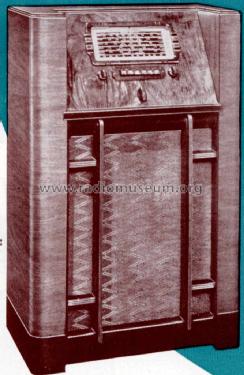

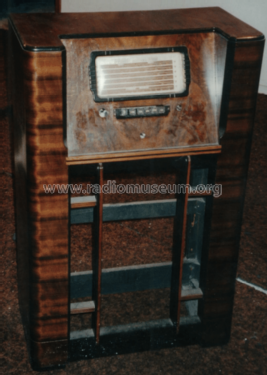

De Forest DeForest: Biltmore Ch=9D791 [Radio] ID = 1374975 911x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Biltmore Ch=9D791, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:

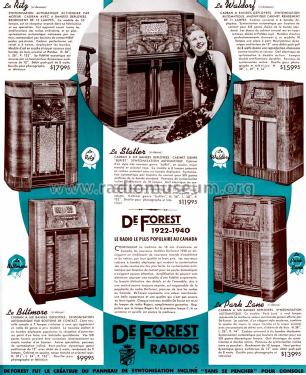

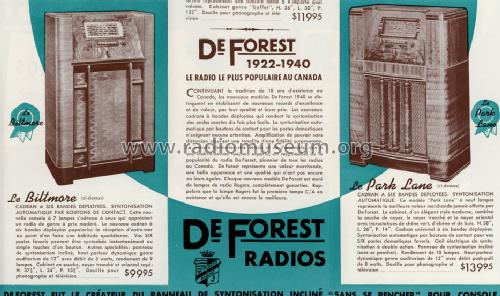

Scanned from the DeForest Folder 1939/40.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7M 6J8M 6K7M 75M or 6B6M 41M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Biltmore Ch=9D791 - De Forest DeForest Crosley
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 24 x 37.5 x 13.75 inch / 610 x 953 x 349 mm
Notes

This set is electrically identical to the Rogers 14/76, Majestic 976 and De Forest Embassy. It is also electronically identical to the Rogers 14/86 Majestic 986 and De Forest Statler which also have 6X6 tuning indicator tube circuits.

Price in first year of sale 99.95 $
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 58, 59, 60 & Cross-Reference
Literature/Schematics (3) DeForest Folder 1939/40.

Model page created by Robin Roeckers. See "Data change" for further contributors.
