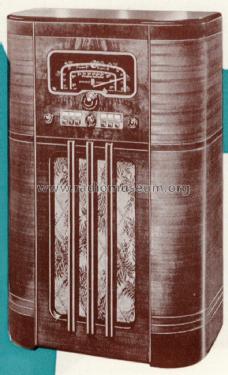

De Forest DeForest: Bizet Ch= 8D723 [Radio] ID = 1394798 852x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bizet Ch= 8D723, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
Scanned from the DeForest Folder for 1940.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1938–1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6J8M 6K7M 75M 41M 6X6 2X3 2X3
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Bizet Ch= 8D723 - De Forest DeForest Crosley
Material Wooden case
Shape Console with Push Buttons.
Notes

This set has a six-button automatic tuning mechanism. The 6X6 is a tuning indicator tube.

The Rogers 13-71, 13-76, Majestic 871, 876 and De Forest Elgar are electronically identical.

Price in first year of sale 114.95 $
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 43 & 44
Literature/Schematics (1) -- Original prospect or advert (DeForest Folder for 1940)
Literature/Schematics (2) The Winnipeg Tribune; 1939-07-31
