Connemara Ch= 10D721

Connemara Ch= 10D721; De Forest DeForest (ID = 2242012) Radio

Connemara Ch= 10D721; De Forest DeForest (ID = 2242013) Radio

Connemara Ch= 10D721; De Forest DeForest (ID = 2242014) Radio
Use red slider bar for more.
Connemara Ch= 10D721; De Forest DeForest (ID = 2242012) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1940/1941 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T6M 20J8M 12K7M 12B6M 6X6 50C6G 50Y6G
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Connemara Ch= 10D721 - De Forest DeForest Crosley
Notes

The Deforest "Connemara" is a 7-tube radio for broadcast and shortwave reception. Has tuning eye tube and internal loop antenna for the broadcast band. Same schematic and chassis as the Rogers 15/76 and the Majestic 41/76.

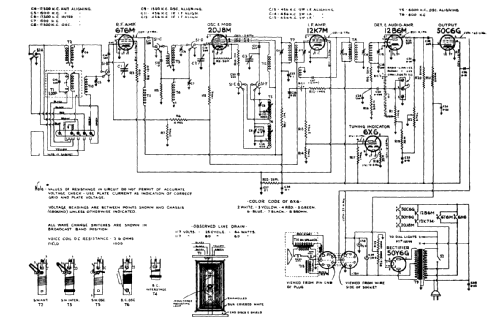

Literature/Schematics (1) - - Manufacturers Literature (Rogers service manual Vol 3 P. 134)

Model page created by Tom Seeger. See "Data change" for further contributors.
