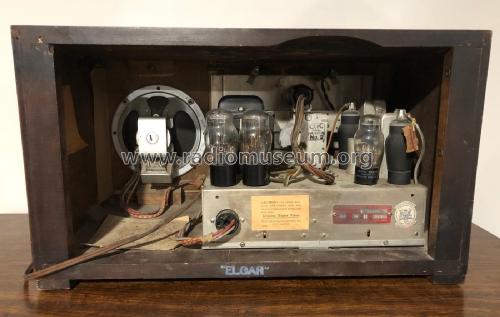

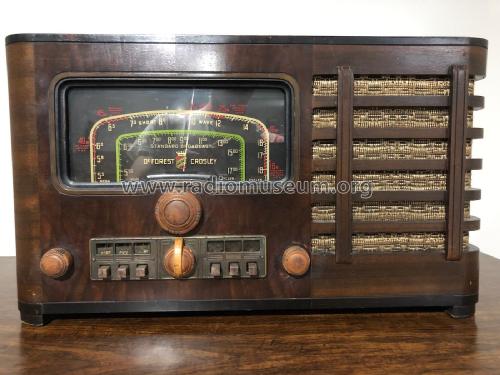

De Forest DeForest: Elgar Ch= 8D723 [Radio] ID = 1394790 933x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elgar Ch= 8D723, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
Scanned from the DeForest Folder for 1940.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6J8M 6K7M 75M 41M 6X6 2X3 2X3
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Elgar Ch= 8D723 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20.375 x 11.875 x 10.375 inch / 518 x 302 x 264 mm
Notes This set has an automatic tuning mechanism. The 6X6 is a tuning indicator tube. The Rogers 13-71, 13-76, Majestic 871, 876 and De Forest Bizet are electronically identical.
Price in first year of sale 79.95 $

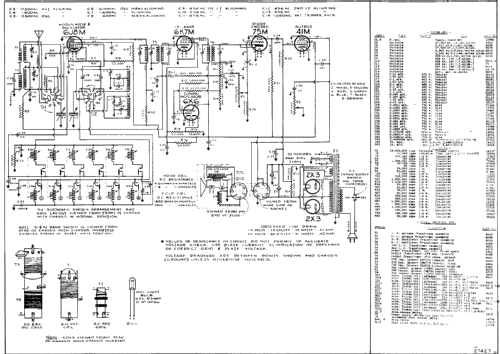

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 43 & 44
