• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 168995

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

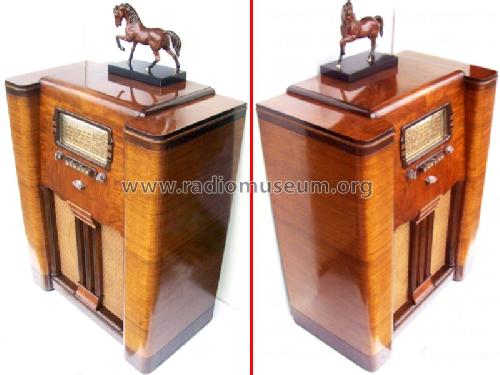

  • Model: Embassy Ch= 9D791 - De Forest DeForest Crosley
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 27 x 35 x 15 inch / 686 x 889 x 381 mm
  • Notes
  • This set is electrically identical to the Rogers 14/76, Majestic 976 and De Forest Biltmore. It is also electronically identical to the Rogers 14/86, Majestic 986 and De Forest Statler which have a 6X6 tuning indicator tube circuits.
  • Net weight (2.2 lb = 1 kg)
  • 61 lb (61 lb 0 oz) / 27.694 kg
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section, pages 58, 59, 60 & Cross-Reference
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
