Herbert Ch= 8D891

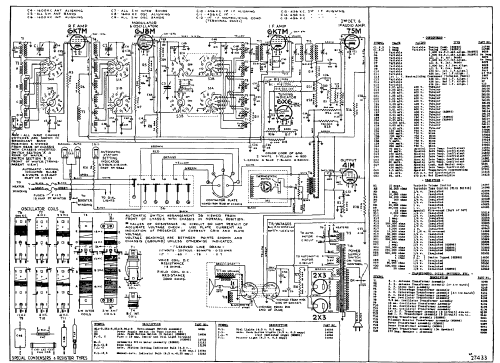

Herbert Ch= 8D891; De Forest DeForest (ID = 2244897) Radio

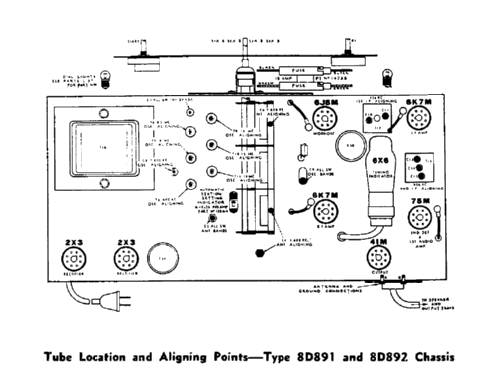

Herbert Ch= 8D891; De Forest DeForest (ID = 2244899) Radio
Herbert Ch= 8D891; De Forest DeForest (ID = 1107197) Radio
Use red slider bar for more.
Herbert Ch= 8D891; De Forest DeForest (ID = 1107197) Radio
De Forest DeForest: Herbert Ch= 8D891 [Radio] ID = 1107197 579x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Herbert Ch= 8D891, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:

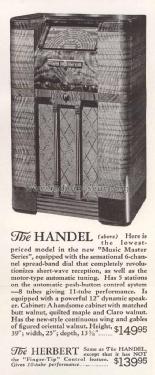

Scanned from the DeForest Crosley flier 1939 (CDN).

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7M 6J8M 6K7M 75M 6X6 41M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Herbert Ch= 8D891 - De Forest DeForest Crosley
Material Wooden case
Shape Console with any shape - in general
Notes The 6X6 tube is a tuning indicator. The DeForest Handel is electronically identical to this model, except that Herbert has NOT the "Finger-Tip" Control feature.
Price in first year of sale 139.95 $
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 50, 49, 51 & Cross-Reference
Literature/Schematics (1) - - Manufacturers Literature (Rogers service manual Vol 3 P. 61)

Model page created by Robin Roeckers. See "Data change" for further contributors.
