Knight Ch= 79; De Forest DeForest (ID = 799749) Radio
De Forest DeForest: Knight Ch= 79 [Radio] ID = 799749 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knight Ch= 79, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7M 88M 75M 41M 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Knight Ch= 79 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 15 x 12 x 19 inch / 381 x 305 x 483 mm
Notes Cabinet made by Victoriaville Furniture Ltd. in Victoriaville, Quebec. 2mm veneered wood, filigree speaker lattice, 2 strips of inlay wood.
The Rogers Ten-50, Ten-55, Majestic Papineau, Jacques Cartier and De Forest Viscount are identical to this model.

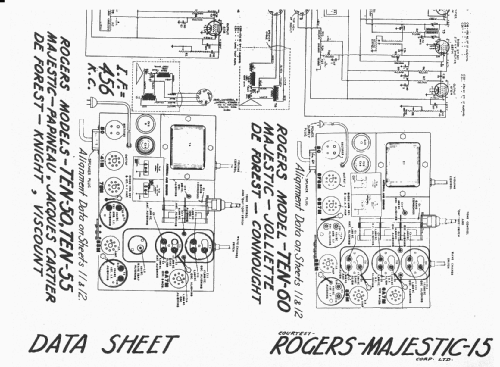

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 15, 11, 12 & Cross Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.
