Lancaster 766

Lancaster 766; De Forest DeForest (ID = 1398645) Radio Lancaster 766; De Forest DeForest (ID = 1398646) Radio
Lancaster 766; De Forest DeForest (ID = 1398653) Radio Lancaster 766; De Forest DeForest (ID = 1398654) Radio
Lancaster 766; De Forest DeForest (ID = 1398655) Radio Lancaster 766; De Forest DeForest (ID = 1398658) Radio
Lancaster 766; De Forest DeForest (ID = 1398659) Radio Lancaster 766; De Forest DeForest (ID = 1398924) Radio

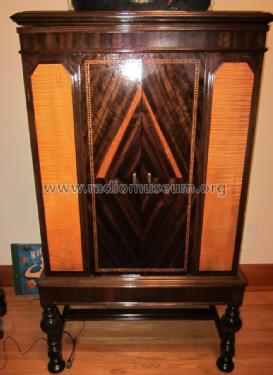

Lancaster 766; De Forest DeForest (ID = 1399553) Radio
Use red slider bar for more.
Lancaster 766; De Forest DeForest (ID = 1398645) Radio
De Forest DeForest: Lancaster 766 [Radio] ID = 1398645 862x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lancaster 766, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 224 224 224 227 227 245 245 280
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Lancaster 766 - De Forest DeForest Crosley
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 27 x 47 x 16 inch / 686 x 1194 x 406 mm
Source of data Radio College of Canada (RCC)
Circuit diagram reference Radio College of Canada
Mentioned in p.8 Deforest Crosley type 766 chassis RCC manual

Model page created by Steve Valeriote. See "Data change" for further contributors.
