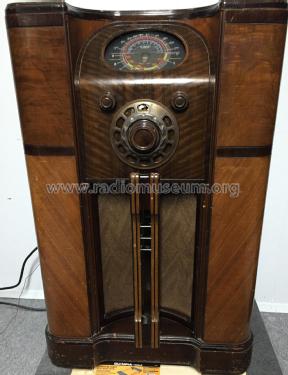

For model Laurentian Ch= 7D932, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7M 6A7M RT_neon 6K7M 6X6 86M 6F6M 6F5M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Laurentian Ch= 7D932 - De Forest DeForest Crosley

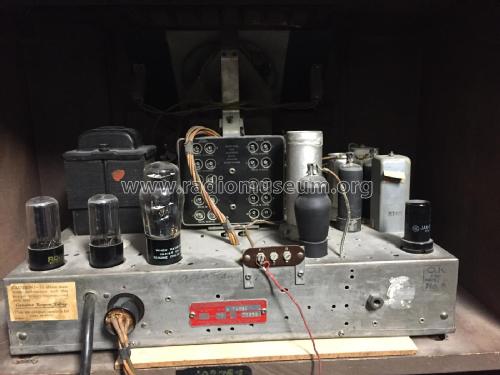

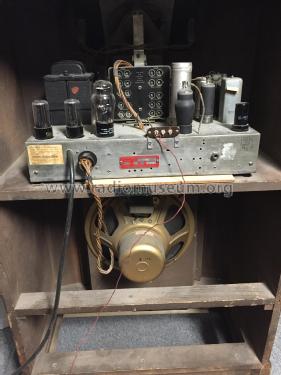

Notes The RT_neon is a voltage regulator tube. The 6X6 is a tuning indicator tube. This set is equipped with automatic tuning. The Rogers 12-96 and Majestic 798 are nearly electronically identical to this set.

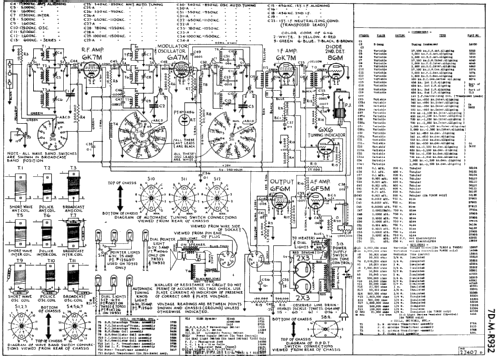

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 34 & 35
