McDowell Ch= 8D822; De Forest DeForest (ID = 381330) Radio

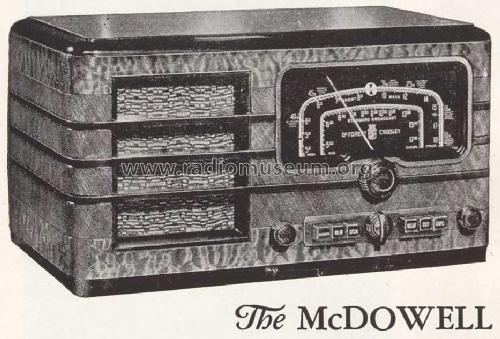

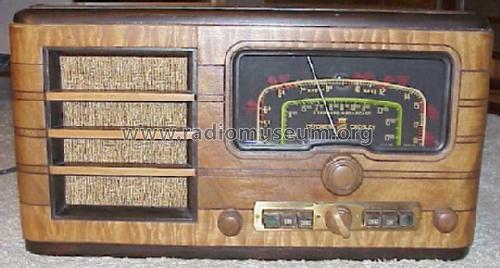

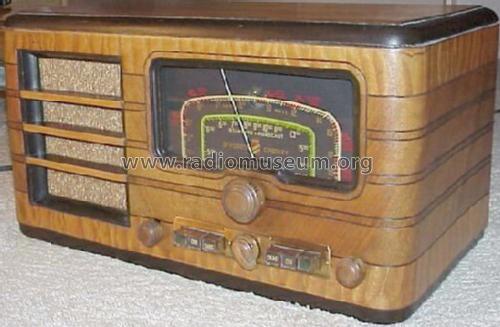

De Forest DeForest: McDowell Ch= 8D822 [Radio] ID = 381330 540x290
Select picture or schematic to display from thumbnails on the right and click for download.
For model McDowell Ch= 8D822, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner

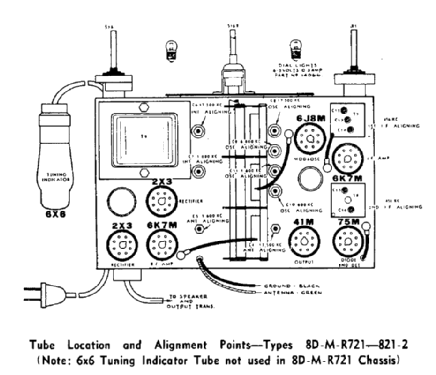

Valves / Tubes 8: 6K7M 6J8M 6K7M 75M 6X6 41M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 1 AF stage(s)
Tuned circuits 8 AM circuit(s)

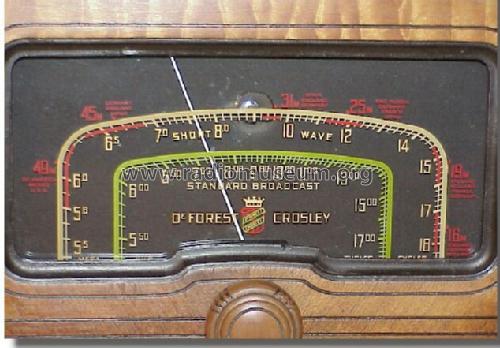

Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: McDowell Ch= 8D822 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 21.1875 x 11.375 x 11.375 inch / 538 x 289 x 289 mm

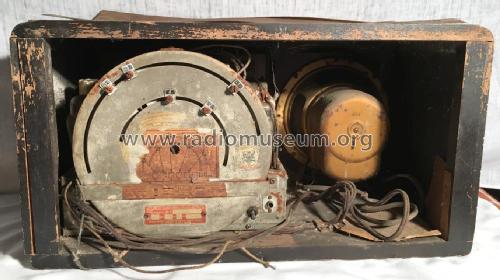

Notes This set uses a motorized tuning unit. The 6X6 is a tuning indicator tube. This set is electrically identical to the Rogers 13/80, 13/85, Majestic 880, 885 and DeForest Pryor models. A handsome automatic "Finger-Tip Control" with motor-type press-button operation.
Price in first year of sale 99.95 $

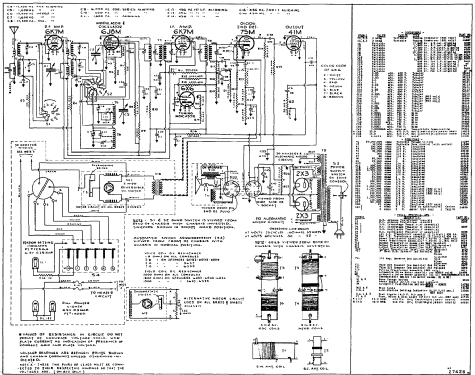

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 46 & Cross-Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.



All listed radios etc. from De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
