For model Park Lane Ch= 9D991, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:

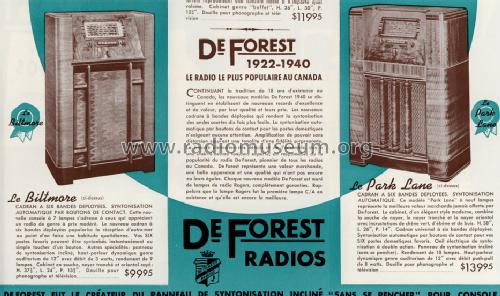

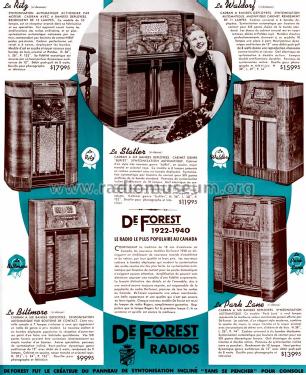

Scanned from the DeForest Folder 1939/40.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner

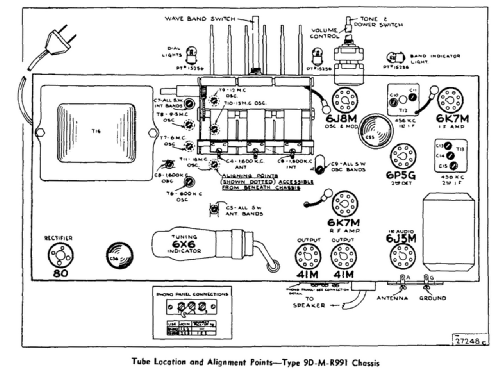

Valves / Tubes 9: 6K7M 6J8M 6K7M 6P5G 6X6 6J5M 41M 41M 80
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Park Lane Ch= 9D991 - De Forest DeForest Crosley
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 26 x 38 x 14 inch / 660 x 965 x 356 mm
Notes

This set has a 6-push-button automatic tuning. This unit uses a push-pull audio output circuit. This set is electronically identical to the Rogers 14/96, and Majestic 996 models.

Net weight (2.2 lb = 1 kg) 73 lb (73 lb 0 oz) / 33.142 kg
Price in first year of sale 139.95 $
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 58A, 59, 60 & Cross-Reference
Literature/Schematics (3) DeForest Folder 1939/40.

Model page created by Robin Roeckers. See "Data change" for further contributors.
