Prescott Ch= 7D832; De Forest DeForest (ID = 1016979) Radio
De Forest DeForest: Prescott Ch= 7D832 [Radio] ID = 1016979 598x800

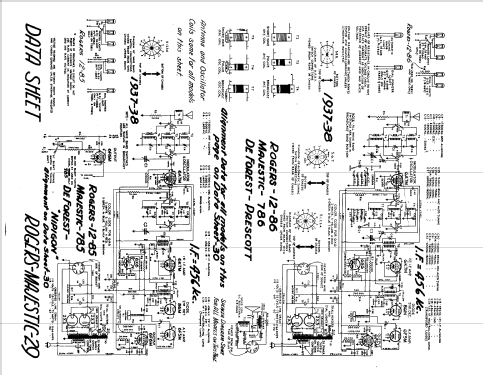

Select picture or schematic to display from thumbnails on the right and click for download.
For model Prescott Ch= 7D832, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A7M 6K7M 86M 6F5M 6X6 6F6M 2X3 2X3
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Prescott Ch= 7D832 - De Forest DeForest Crosley
Notes The 6X6 tube is a tuning indicator. The Majestic 786 and Majestic 786 are electronically identical to this set.
Collectors' prices

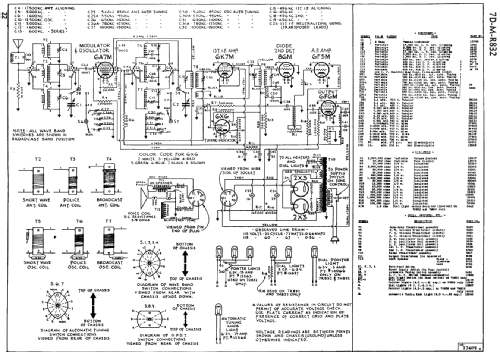

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 29 & 30

Model page created by Robin Roeckers. See "Data change" for further contributors.
