Statler Ch= 9D891 Buffet

Statler Ch= 9D891; De Forest DeForest (ID = 2241550) Radio

Statler Ch= 9D891; De Forest DeForest (ID = 2241551) Radio

Statler Ch= 9D891; De Forest DeForest (ID = 2241552) Radio

Statler Ch= 9D891; De Forest DeForest (ID = 2241553) Radio

Statler Ch= 9D891; De Forest DeForest (ID = 2241554) Radio

Statler Ch= 9D891; De Forest DeForest (ID = 2241555) Radio
Statler Ch= 9D891; De Forest DeForest (ID = 1374968) Radio Statler Ch= 9D891; De Forest DeForest (ID = 1374969) Radio
Statler Ch= 9D891; De Forest DeForest (ID = 1374970) Radio
Use red slider bar for more.
Statler Ch= 9D891; De Forest DeForest (ID = 1374968) Radio
De Forest DeForest: Statler Ch= 9D891 [Radio] ID = 1374968 933x1055
Select picture or schematic to display from thumbnails on the right and click for download.
For model Statler Ch= 9D891 Buffet, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
Scanned from the DeForest Folder 1939/40.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7M 6J8M 6K7M 75M or 6B6M 6X6 41M 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Statler Ch= 9D891 [Buffet] - De Forest DeForest Crosley
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 30 x 36 x 12.75 inch / 762 x 914 x 324 mm
Notes

This set is electrically identical to the Rogers 14/86 and Majestic 986. It is also electronically identical to the Rogers 14/76, Majestic 976, De Forest Biltmore and Embassy which do not have the 6X6 tuning indicator tube circuits.

Price in first year of sale 119.95 $

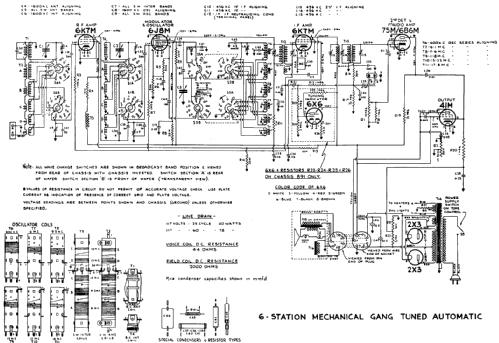

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section, pages 58, 59, 60 & Cross-Reference
Literature/Schematics (3) DeForest Folder 1939/40.

Model page created by Robin Roeckers. See "Data change" for further contributors.
