Rhapsody Ch= 850

Rhapsody Ch= 850; De Forest DeForest (ID = 1124148) Radio Rhapsody Ch= 850; De Forest DeForest (ID = 1124149) Radio
Use red slider bar for more.
Rhapsody Ch= 850; De Forest DeForest (ID = 1124148) Radio
De Forest DeForest: Rhapsody Ch= 850 [Radio] ID = 1124148 730x1280
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rhapsody Ch= 850, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:

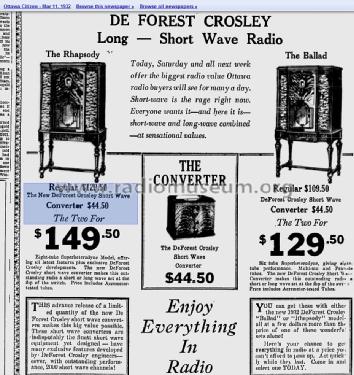

March 11, 1932 The Evening Citizen newspaper Ottawa, Canada

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: UY235 UY224 UY235 UY227 UY227 UX245 UX245 UX280
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Rhapsody Ch= 850 - De Forest DeForest Crosley
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes DeForest Crosley "The Rhapsody" 8-Tube Superheterodyne Console Receiver.
Price in first year of sale 129.50 $
Circuit diagram reference Radio College of Canada
Mentioned in Radio College of Canada (RCC) (DeForest p.20)
Literature/Schematics (1) March 11, 1932 The Evening Citizen newspaper Ottawa, Canada
Literature/Schematics (2) - - Manufacturers Literature (Personalities in Radioland, Nov. 1931)

Model page created by Alan Larsen. See "Data change" for further contributors.
