• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1925 ?

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 343631

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 201A 201A

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries / See Text Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Two -Step AF Amplifier - De Forest DeForest Crosley

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 11 x 6.5 x 6 inch / 279 x 165 x 152 mm

• Notes

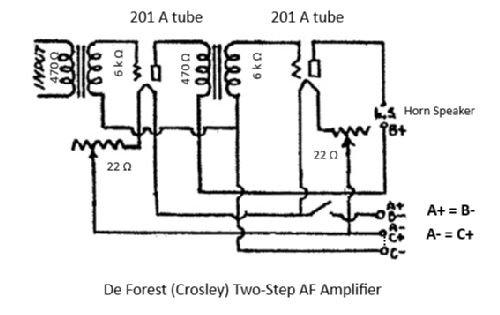

• Voltage, see schematic:
  A = 6V
  B = 45 V
  C = 0 (C+ =C-) or -4.5 V

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Author
• Model page created by Serioja Tatu. See "Data change" for further contributors.
