Type 850 Ch= 850 Tombstone
De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
- Country
- Canada
- Manufacturer / Brand
- De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
- Year
- 1931/1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332037
Back of DeForest Crosley 850 showing chassis

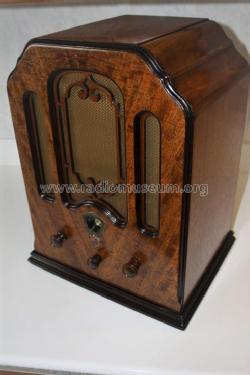

DeForest Crosley 850 front of cabinet

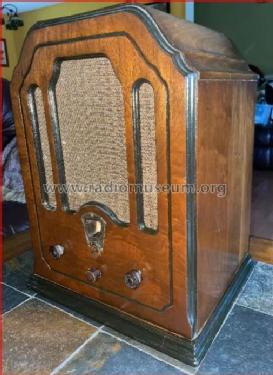

Alternate cabinet for DeForest Crosley 850
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Type 850 Ch= 850 [Tombstone] - De Forest DeForest Crosley
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 14 x 17.5 x 11 inch / 356 x 445 x 279 mm
- Notes
-
DeForest Crosley 850 tombstone radio. The 850 chassis was used in a number of DeForest Crosley radios, including their clock radio from the same period.
- Mentioned in
- Radios of Canada; Swackhammer (Page 38)
- Author
- Model page created by Terry Maurice. See "Data change" for further contributors.
