Virgo Ch= 6D511

Virgo Ch= 6D511; De Forest DeForest (ID = 2167543) Radio

Virgo Ch= 6D511; De Forest DeForest (ID = 2167544) Radio
Virgo Ch= 6D511; De Forest DeForest (ID = 1164744) Radio Virgo Ch= 6D511; De Forest DeForest (ID = 1164780) Radio
Virgo Ch= 6D511; De Forest DeForest (ID = 2092746) Radio Virgo Ch= 6D511; De Forest DeForest (ID = 2092747) Radio
Virgo Ch= 6D511; De Forest DeForest (ID = 2167535) Radio
Use red slider bar for more.

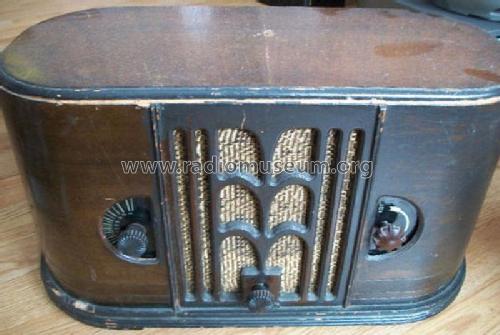

Virgo Ch= 6D511; De Forest DeForest (ID = 1164744) Radio
De Forest DeForest: Virgo Ch= 6D511 [Radio] ID = 1164744 400x724
Select picture or schematic to display from thumbnails on the right and click for download.
For model Virgo Ch= 6D511, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
Scanned from the DeForest Crosley Folder season 1936/37.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7M 6K7M 75M 41M 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Virgo Ch= 6D511 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Made by Rogers-Majestic for Deforest-Crosley.

External source of data Folder for season 1936/37.

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Here you find 250 models, 105 with images and 169 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
