Wales Ch= 71

Wales Ch= 71; De Forest DeForest (ID = 1087488) Radio Wales Ch= 71; De Forest DeForest (ID = 1091005) Radio

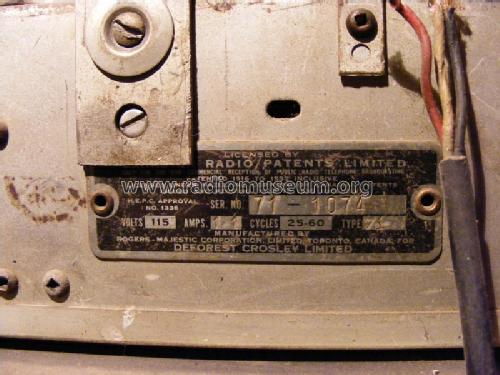

Wales Ch= 71; De Forest DeForest (ID = 1091006) Radio Wales Ch= 71; De Forest DeForest (ID = 1091007) Radio
Use red slider bar for more.
Wales Ch= 71; De Forest DeForest (ID = 1087488) Radio
De Forest DeForest: Wales Ch= 71 [Radio] ID = 1087488 576x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wales Ch= 71, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7M 6A7M 6K7M 6K7M 6B7M 41M 41M 6A6 5Z3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Wales Ch= 71 - De Forest DeForest Crosley
Material Wooden case
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 8, 11, 12 & Cross Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.
