• Country
• People's Republic of China

• Manufacturer / Brand
• Degen 深圳市德劲电子有限公司 Electronics Co. Ltd.; Shenzhen

• Year
• 2012 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349396

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / Li-Ion 3.7 / USB 5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

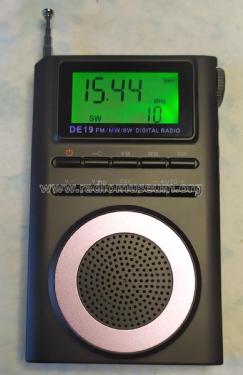

• Model: FM/FML Stereo/MW/SW Receiver DE19 - Degen 深圳市德劲电子有限公司 Electronics

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 109 x 15 mm / 2.6 x 4.3 x 0.6 inch

• Notes

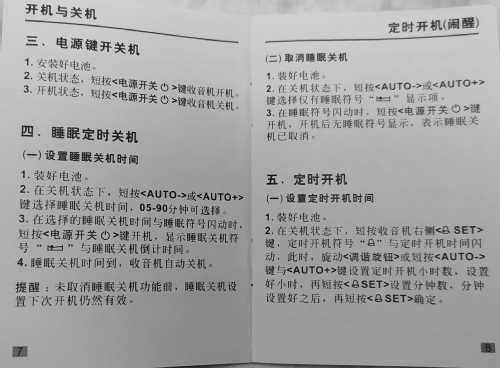

• The DEGEN DE19 pocket radio features FM, FML, MW, and SW bands, clock and sleep timer,

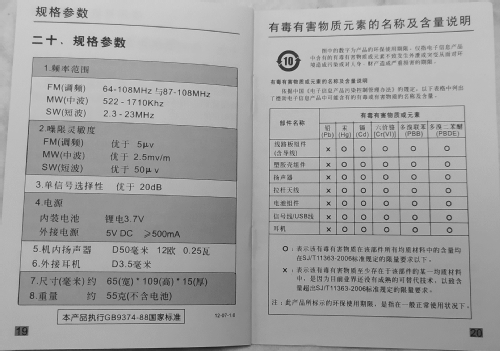

  Main features

  • FM: 87.0 - 108.0 MHz (100 kHz steps)
  • FML: 64.0 - 108.0 MHz  (100 kHz steps)
  • MW:
    • 522 - 1710 kHz (9 kHz spes)
    • 520 - 1710 kHz (10 kHz steps)
  • SW:
    • 2.30 - 23.00 MHz (5 kHz steps)
    • Continuous band scan
    • Intermediate points for easier operation, selectable:
      • 6 MHz (~49m)
      • 7.30 MHz (~41m)
      • 9.50 MHz (~31m)
      • 11.70 MHz (~25m)
      • 13.50 MHz (~22m)
      • 15.20 MHz (~19m)
      • 18.20 MHz (~15m)
  • 245 memory presets
  • Manual, Auto, and ATS tuning

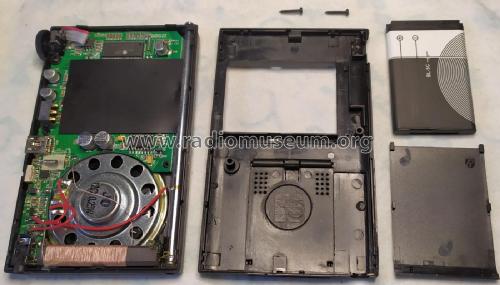

  • Removable BL-5C 3.7V 1200 mAh Lithium Polymer battery, charged via USB port.



  Brief technical details

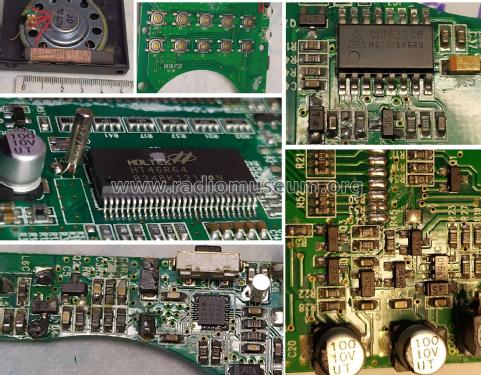

  The PCB assembly reference is "DE19.PCB  07.18".

  The design is based on a Si4734-D60 DSP IC by Silicon Labs. A basic RF Fron-end, using one J8 NPN transistor and one C3 pair of diodes for antenna ESD protection, handles the SW signals.

  A CD1622CB 2-channel/BTL audio amplifier IC drives the built-in 50mm 12 Ohm speaker.

  A HT46R64 MCU IC by HOLTEK manages the radio and drives the LCD, with the help of a ATMLH302 (AT24C08D) 8Kbit serial EEPROM by ATMEL/MICROCHIP.

  The power supply uses some additional active components to handle the battery charging, power regulation, and switching.

• Net weight (2.2 lb = 1 kg)
• 0.140 kg / 0 lb 4.9 oz (0.308 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
