• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 63089
    • Brand: Grivox

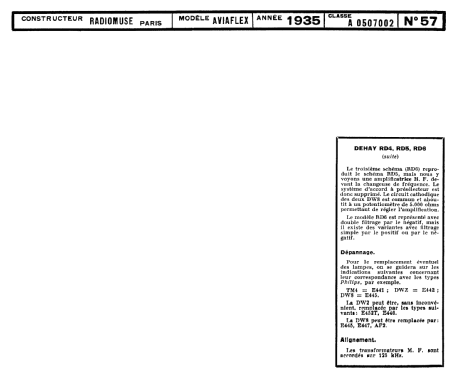

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 125 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: RD5 - RD Radio, Éts. R. Dehay et Cie
  • Price in first year of sale
  • 1,795.00 FRF
  • External source of data
  • Serge Laffont/Martin Renoth
  • Literature/Schematics (1)
  • Radio & Phono Materiel, No. 95, Mars 1934
