Delco 4053-A

Delco 4053-A ; United Motors (ID = 466500) Radio
Use red slider bar for more.
Delco 4053-A ; United Motors (ID = 466500) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 58 56 58 58 56 56 56 2A5 2A5 unknown_rectifier
Main principle Superheterodyne (common); ZF/IF 181.5 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Delco 4053-A - United Motors Service Delco
Notes

The Delco 4053-A is an AC operated 10 tube BC and SW receiver.

External source of data Ernst Erb

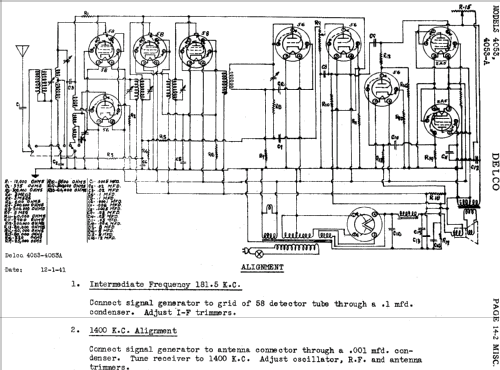

Literature/Schematics (1) Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944) (Misc Section page 14-2)
