• Year
  • 1967/1968
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 265386

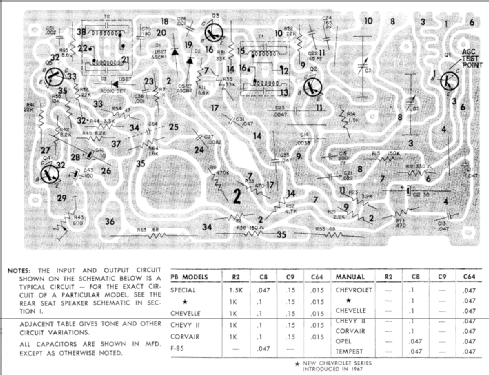

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 986846 - Delco Radio Corp. Appliance
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 210 x 90 x 210 mm / 8.3 x 3.5 x 8.3 inch
  • Notes
  • Dieses Gerät wurde in die Chevrolets (Impala, Caprice, Belair u.a.m.) in den Jahren 1967/1968 eingebaut.

  • Author
  • Model page created by Christophe Howald. See "Data change" for further contributors.
