Delco R-1234

Delco R-1234 ; United Motors (ID = 467047) Radio

Delco R-1234 ; United Motors (ID = 467048) Radio

Delco R-1234 ; United Motors (ID = 467049) Radio

Delco R-1234 ; United Motors (ID = 508299) Radio

Delco R-1234 ; United Motors (ID = 508300) Radio

Delco R-1234 ; United Motors (ID = 508301) Radio

Delco R-1234 ; United Motors (ID = 508302) Radio

Delco R-1234 ; United Motors (ID = 1278950) Radio
Delco R-1234 ; United Motors (ID = 1487927) Radio Delco R-1234 ; United Motors (ID = 1120738) Radio

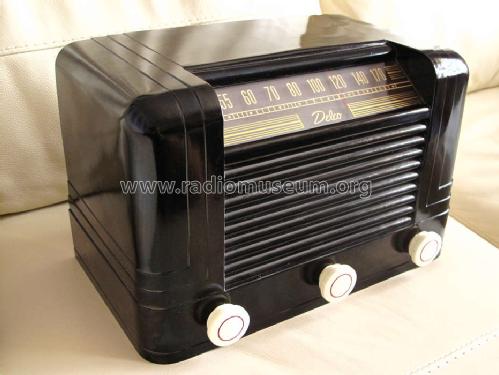

Delco R-1234 ; United Motors (ID = 1574005) Radio Delco R-1234 ; United Motors (ID = 1120739) Radio
Delco R-1234 ; United Motors (ID = 1141990) Radio Delco R-1234 ; United Motors (ID = 1265743) Radio

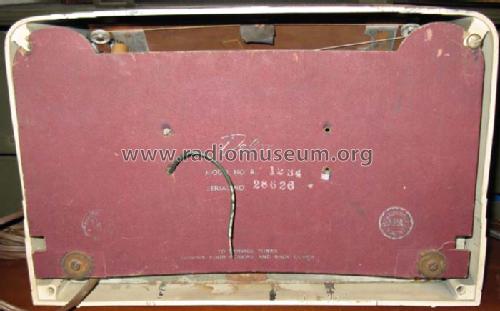

Delco R-1234 ; United Motors (ID = 1265744) Radio Delco R-1234 ; United Motors (ID = 1265745) Radio

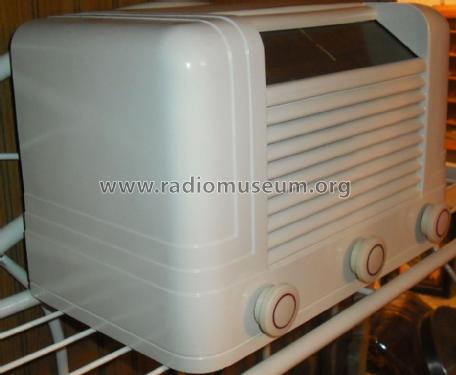

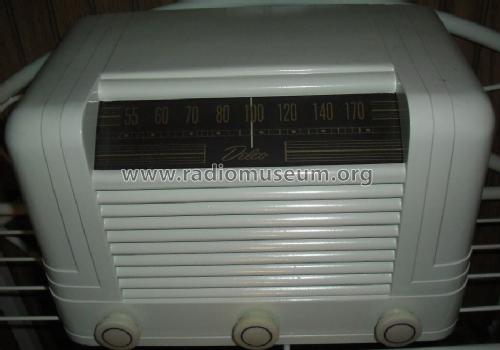

Delco R-1234 ; United Motors (ID = 1358152) Radio Delco R-1234 ; United Motors (ID = 1358153) Radio
Use red slider bar for more.

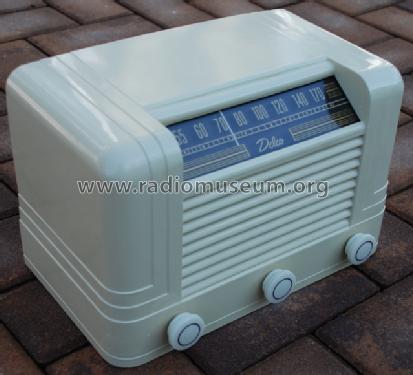

Delco R-1234 ; United Motors (ID = 1487927) Radio
United Motors: Delco R-1234 [Radio] ID = 1487927 640x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R-1234, United Motors Service (Delco):
American Radio design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: Delco R-1234 - United Motors Service Delco
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

DELCO model R-1234: Built-in loop antenna or external antenna. Sams photofact, set 7, folder 467-7, date 10-46, features the Delco models R-1234 and R-1235 as the same schematic. Ivory or mahogany finish.

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before

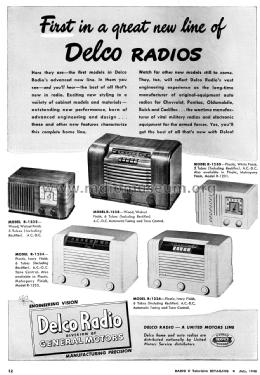

Mentioned in Radio Retailing (Radio & Television R.) (July 1946 page 12. September 1946 page 22.)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 7 folder 467-7 date 10-46)

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
