Delco R-1235

Delco R-1235 ; United Motors (ID = 467050) Radio

Delco R-1235 ; United Motors (ID = 467051) Radio

Delco R-1235 ; United Motors (ID = 467052) Radio

Delco R-1235 ; United Motors (ID = 508295) Radio

Delco R-1235 ; United Motors (ID = 508296) Radio

Delco R-1235 ; United Motors (ID = 508297) Radio

Delco R-1235 ; United Motors (ID = 508298) Radio

Delco R-1235 ; United Motors (ID = 1278949) Radio
Delco R-1235 ; United Motors (ID = 474943) Radio Delco R-1235 ; United Motors (ID = 612134) Radio
Delco R-1235 ; United Motors (ID = 474945) Radio Delco R-1235 ; United Motors (ID = 474946) Radio
Delco R-1235 ; United Motors (ID = 474947) Radio Delco R-1235 ; United Motors (ID = 612135) Radio
Delco R-1235 ; United Motors (ID = 612136) Radio Delco R-1235 ; United Motors (ID = 711728) Radio
Delco R-1235 ; United Motors (ID = 1120737) Radio Delco R-1235 ; United Motors (ID = 1720047) Radio
Use red slider bar for more.
Delco R-1235 ; United Motors (ID = 474943) Radio
United Motors: Delco R-1235 [Radio] ID = 474943 400x308
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R-1235, United Motors Service (Delco):
ebay

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: Delco R-1235 - United Motors Service Delco
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 8 x 7 inch / 305 x 203 x 178 mm
Notes Built-in loop antenna or external antenna. Sams photofact, set 7, folder 467-7, date 10-46, features the Delco models R-1234 and R-1235 as the same schematic. Mahogany finish.
Net weight (2.2 lb = 1 kg) 8 lb (8 lb 0 oz) / 3.632 kg
Collectors' prices
Source of data Collector's Guide to Antique Radios (7th Edition)
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Radio Retailing (Radio & Television R.) (July 1946 page 12.)

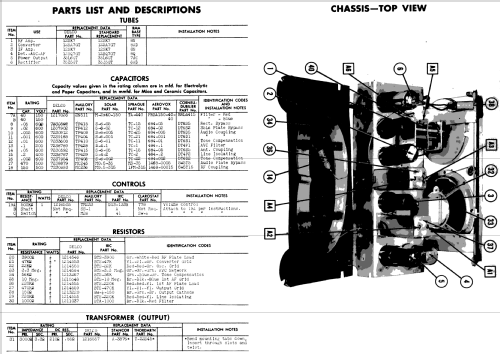

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 7 folder 467-7 date 10-46)

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
