2 Band AM-FM Multiplex Radio FMS-413U

Delmonico; Long Island City (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1967 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306566

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 2 W (2.4 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2 Band AM-FM Multiplex Radio FMS-413U - Delmonico; Long Island City NY
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • An AC mains AM/FM/FM MPX stereo table radio covering MW (540-1600 kHz) and FM (88-108 MHz). 2 x 5 inch and 2 x 4 inch loudspeakers. Built by JVC for Delmonico, see also  the Nivico 2 Band AM-FM Multiplex Radio FMS-413U which is virtually identical.

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 15.4 lb (15 lb 6.4 oz) / 6.992 kg
  • Mentioned in

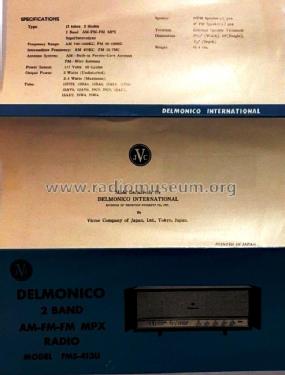

  • - - Manufacturers Literature (Schematic and Specification)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
