• Country
• France

• Manufacturer / Brand
• Cépadyne (marque), Éts. A.-G. Delval, Comptoir Électrique Parisien (CEP); Paris

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63120

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 58 57 27 or 56 58 55 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 135 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Président [7 lampes] - Cépadyne marque, Éts. A.-G.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 450 x 500 x 280 mm / 17.7 x 19.7 x 11 inch

• Notes

• Superhétérodyne 7 lampes, toutes ondes de 16 à 2600 m.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 1,975.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Bulletin Meusien, 16.12.1933

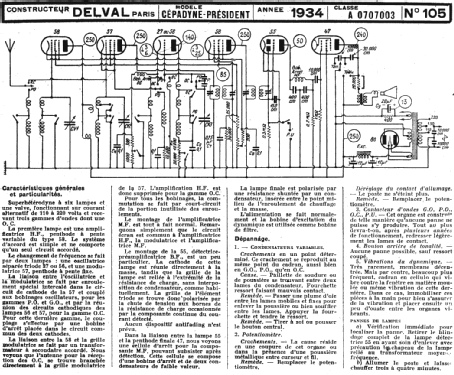

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 105)

• Other Models

• Here you find 22 models, 14 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Cépadyne (marque), Éts. A.-G. Delval, Comptoir Électrique Parisien (CEP); Paris
